Arithmetic0

MLModule

author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLMiscModules
definition	MLMiscModules.def
see also	SoCalculator
keywords	add, subtract, multiply, divide, vector, Vector3, exp, log, root, sqrt, sin, cos, tan, arccos, arcsin, arctan, logic, and, or, xor, DICOM, dicom, time, date, duration, diff, relative, error, growth, conversion, effective, diameter, ml, mm, volume

Purpose

The module Arithmetic0 performs arithmetic operations on one or two scalar or vec3 arguments. Some modes for the DICOM types date and time related to long integers are also available.

There is no input or output image. It provides a simple substitute for SoCalculator, useful, e.g., in cases where you want easier-to-understand networks, where Open Inventor modules should not be used (i.e., for networks to be integrated in a non-Open Inventor environment), or where the delayed evaluation and/ or multiple notifications from SoCalculator cause problems or simply for new users who might find SoCalculator somewhat difficult to use.

Some special operations are implemented to handle temporal information in the formats usually encountered in DICOM tags, a functionality not easily implemented without scripting.

Warning

Please note that careless or excessive use of this module in place of scripted field arithmetic is likely to produce notification avalanches in more complex networks, resulting in many unintended recomputations of results that might slow down your network considerably!

Usage

Select the arithmetic operation you want to apply to the one or two arguments required by the operation.

Windows

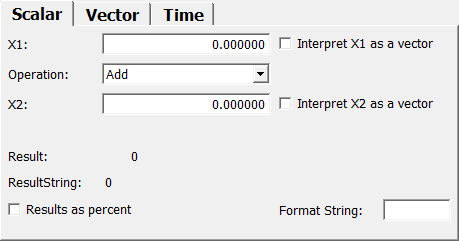

Default Panel

Parameter Fields

Field Index

Argument 1: Vector3	Result Vec.: Vector3
Argument 2: Vector3	Results As Percent: Bool
Date: Double	ResultString: String
debugLevel: Integer	Time/Date2: Double
Format String: String	X: Double
Interpret X1 as a vector: Bool	Y: Double
Interpret X2 as a vector: Bool	Z: Double
Operation: Enum

Input and result arguments are implemented as vec3 Fields; however, since MeVisLab fields can be connected to fields of different type, you may simply connect any scalar field or small vector to the vec3 inputs (Argument 1 and Argument 2 fields) or from the vec3 result field, and should usually get the desired result. For ease of usage, the first component of each vector is also provided in a related scalar field. In order to do things like scalar multiplication of a vector the fields arg1/2XAsVec can be used.

If these are true, a value argNX = x will be used like the vector (x,x,x) rather than (x,0,0) which is the default. Beware: When connecting a vector to one of the scalar fields only the vectors x component is used.

The components of the result is also given in separate fields; to enable easier usage in cases where a single scalar result will be used, e.g., in a macro GUI. In case of operations dealing with time and or date, the result will in addition be given as a ResultString usable, e.g., in GUI fields, annotations, or filenames. For other operations, the resultString contains the integer part of the vector components separated by “,” or only the first vector component if the other two are zero. This feature again is intended for use in annotations or filenames. The resultString is available under the TimeAndDate tab only.

Visible Fields

Argument 1

name: arg1, type: Vector3, default: 0 0 0

Sets a first scalar argument.

Date

name: arg1X, type: Double, default: 0

Sets a first argument of type Date.

Interpret X1 as a vector

name: arg1XAsVec, type: Bool, default: FALSE

If checked, the Argument 1 is interpreted as a 3D vector with all the same entries.

Operation

name: operation, type: Enum, default: Add

Defines the operation on Argument 1 (and Argument 2).

Values:

Title	Name
#Basic Two Arg Ops#	#BasicTwoArgOps#
Add	Add
Subtract	Subtract
Multiply	Multiply
Divide	Divide
Int Divide	IntDivide
Int Modulo	IntModulo
Min	Min
Max	Max
Abs Min	AbsMin
Abs Max	AbsMax
Power	Power
Root	Root
Add Half	AddHalf
Subtract Half	SubtractHalf
#Basic One Arg Ops#	#BasicOneArgOps#
Abs	Abs
Square	Square
Square Root	SquareRoot
Signum	Signum
Invert	Invert
Negative	Negative
exp	exp
Log2	Log2
Log	Log
Log10	Log10
Sin	Sin
Cos	Cos
Tan	Tan
Arc Sin	ArcSin
Arc Cos	ArcCos
Arc Tan	ArcTan
Rad To Deg	RadToDeg
Deg To Rad	DegToRad
Floor	Floor
Round	Round
Ceil	Ceil
Log Round	LogRound
#Special Two Arg Ops#	#SpecialTwoArgOps#
Arc Tan2	ArcTan2
Average	Average
Rel Error	RelError
Growth Rate	GrowthRate
Time Diff Sec	TimeDiffSec
Time Diff Min	TimeDiffMin
Time Diff Hour	TimeDiffHour
#Special One Arg Ops#	#SpecialOneArgOps#
Time Split	TimeSplit
Date Split	DateSplit
Date And Time	DateAndTime
Anonymized Date	AnonymizedDate
Volume To Eff Diameter	VolumeToEffDiameter
Eff Diameter To Volume	EffDiameterToVolume
#Logical Ops#	#LogicalOps#
Equal	Equal
Greater	Greater
Smaller	Smaller
Greater Or Eq	GreaterOrEq
Smaller Or Eq	SmallerOrEq
And	And
Or	Or
Xor	Xor
Bitwise And	BitwiseAnd
Bitwise Or	BitwiseOr
Bitwise Xor	BitwiseXor
First Arg	FirstArg
Second Arg	SecondArg
#One Vector Ops#	#OneVectorOps#
Length	Length
Norm1	Norm1
Max Norm	MaxNorm
Normalize	Normalize
Component Product	ComponentProduct
Component Sum	ComponentSum
#Two Vector Ops#	#TwoVectorOps#
Dot Product	DotProduct
Cos Angle	CosAngle
Rad Angle	RadAngle
Deg Angle	DegAngle
Cross Product	CrossProduct
Normalized Cross Prod.	NormalizedCrossProd.

Argument 2

name: arg2, type: Vector3, default: 0 0 0

Sets a second scalar argument.

Time/Date2

name: arg2X, type: Double, default: 0

Sets a second argument of type Date.

Interpret X2 as a vector

name: arg2XAsVec, type: Bool, default: FALSE

If checked, the Argument 2 is being interpreted as a 3D vector with all the same entries.

Results As Percent

name: resultsAsPercent, type: Bool, default: FALSE

If checked, the result string is appended by a percent sign.

Format String

name: formatString, type: String

Sets a formatting string for ResultString in C-style.

Result Vec.

name: result, type: Vector3, persistent: no

Shows the result of the vector operation.

X

name: resultX, type: Double, persistent: no

Shows the result of the scalar operation or the first component of the vector result.

Y

name: resultY, type: Double, persistent: no

Shows the second component of the result of the vector operation.

Z

name: resultZ, type: Double, persistent: no

Shows the third component of the result of the vector operation.

ResultString

name: resultString, type: String, persistent: no

Shows the result as a formatted string. Use the Format String.

Warning

If Format String is empty, the value will be printed as an integer, with the digits after the decimal point truncated; no rounding will occur in this case.

Hidden Fields

debugLevel

name: debugLevel, type: Integer, default: 0
