asio::TlsConnectorSession Class Reference

A TCP connector session with TLS support asynchronously connecting to a TCP server. More...

#include <TlsConnectorSession.h>

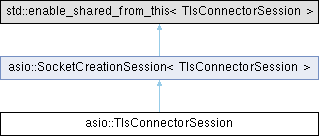

Inheritance diagram for asio::TlsConnectorSession:

Public Member Functions
void	start ()
void	stop ()
Public Member Functions inherited from asio::SocketCreationSession< TlsConnectorSession >
SignalConnection	observeConnectionEstablished (Slot &&slot)
SignalConnection	observeErrorOccured (Slot &&slot)
SignalConnection	observeAboutToBeDestroyed (Slot &&slot)
	~SocketCreationSession ()

Friends
class	SocketCreationSession< TlsConnectorSession >

Additional Inherited Members
Static Public Member Functions inherited from asio::SocketCreationSession< TlsConnectorSession >
static std::shared_ptr< TlsConnectorSession >	create (Arguments &&... arguments)
Protected Member Functions inherited from asio::SocketCreationSession< TlsConnectorSession >
void	emitConnectionEstablished (std::unique_ptr< Socket > socket)
void	emitErrorOccured (const ErrorCode &ec)

Detailed Description

A TCP connector session with TLS support asynchronously connecting to a TCP server.

The session implements the asio::SocketCreationSession class template and signals asio::Socket interfaces for connected and encrypted sockets. Synopsis:

auto context = std::make_shared<asio::Context>();
auto tls_context = std::make_shared<asio::TlsContext>(asio::TlsContext::tlsv12_client);

// configure TLS context
tls_context->set_default_verify_paths();

auto session = asio::TlsConnectorSession::create(context, tls_context, "127.0.0.1", 443);

session->observeConnectionEstablished([](std::unique_ptr<asio::Socket>& socket) {
  // connection with successful TLS handshake has been established!
  // now do something with it. Encryption is done automatically.
});

session->start();

context->run(); // this blocks (as usual) and normally done somewhere else.

Definition at line 36 of file TlsConnectorSession.h.

Member Function Documentation

start()

void asio::TlsConnectorSession::start

(

)

stop()

void asio::TlsConnectorSession::stop

(

)

Friends And Related Symbol Documentation

SocketCreationSession< TlsConnectorSession >

friend class SocketCreationSession< TlsConnectorSession >

friend

Definition at line 36 of file TlsConnectorSession.h.

References ASYNCHRONOUSIO_EXPORT.

---

The documentation for this class was generated from the following file:

• FMEstable/ReleaseMeVis/Projects/AsynchronousIO/Sources/asio/TlsConnectorSession.h
