Base module for providing custom label placement strategies. More...

#include <CSOLabelPlacement.h>

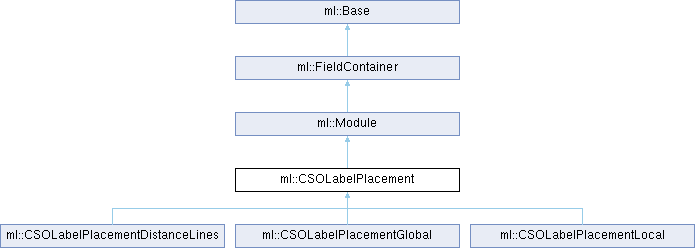

Inheritance diagram for ml::CSOLabelPlacement:

Public Member Functions
	CSOLabelPlacement ()
virtual void	layoutVisibleCSOs (const std::vector< CSODrawCSOInfos > &, const std::map< int, SbVec2f > &, const CSODrawView2DInfos &, SoCSOLabelRenderer *)
virtual void	getAttachedLabelPosition (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, int labelWidth, int labelHeight, float &deviceX, float &deviceY)
	Fills up the device position for an attached label.
virtual void	getLayoutedLabelPosition (const CSODrawCSOInfos &, const CSODrawView2DInfos &, float &, float &)
Public Member Functions inherited from ml::Module
MLMetaProfilePtr &	getMetaProfile () const
	Returns the metaprofile for the base operator.
const char *	getTypeNameFast () const
	Module (int numInputImages, int numOutputImages)
	~Module () override
InputConnectorField *	getInputImageField (MLint i) const
	Returns the field representing input image `i`. `i` must be a valid index.
OutputConnectorField *	getOutputImageField (MLint i=0) const
	Returns the field representing output image `i`. `i` must be a valid index.
MLint	getNumInputImages () const
	Returns the number of input images of this module.
MLint	getNumOutputImages () const
	Returns the number of output images of this module.
PagedImage *	getOutputImage (MLint outputIndex=0) const
	Returns the output image `outputIndex`. The index needs to be in the range [0, getNumOutputImages()-1].
InputConnectorField *	addInputImage (const char *name=nullptr)
OutputConnectorField *	addOutputImage (const char *name=nullptr)
PagedImage *	getInputImage (MLint inputIndex, bool getReal=false) const
PagedImage *	getUpdatedInputImage (MLint inputIndex, bool getReal=false) const
MLErrorCode	processAllPages (int outputIndex=-1, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
MLErrorCode	processAllPages (ProcessAllPagesHandler &handler, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
MLErrorCode	processMissingPages (int outputIndex=0, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
void	clearOutputImage (MLint i=0)
	Clears cached output image pages of output image `i`.
MLint	getOutputImageInplace (MLint outputIndex=0) const
MLint	getBypass (MLint outputIndex=0) const
THREAD_SUPPORT	getThreadSupport () const
bool	areRecursiveHandleNotificationsPermitted () const
MLint	getHandleNotificationEntryCounter () const
PERMITTED_TYPES	getVoxelDataTypeSupport () const
bool	isSupportedVoxelDataType (MLDataType dt) const
virtual INPUT_HANDLE	handleInput (int, INPUT_STATE) const
INPUT_STATE	getInputState (MLint index)
INPUT_STATE	getUpdatedInputState (MLint index)
bool	isInputImageField (Field *field) const
void	touchOutputImageFields () const
	Touches all output image fields to indicate that the images have changed.
virtual void	beginSaveFields ()
virtual void	endSaveFields ()
Public Member Functions inherited from ml::FieldContainer
	FieldContainer ()
	Constructor.
	~FieldContainer () override
	Destructor: Deletes all added fields.
std::string	whoAmI (bool withInstanceName=true) const
Field *	addField (const char name, const char type, const char *value)
Field *	addField (Field *field)
	Adds a `field`, the ownership of the field is passed to the FieldContainer.
BoolField *	addBool (const char *name)
	Creates a BoolField with `name` and adds it to the container. Default value is `false`.
BoolField *	addBool (const char *name, bool value)
	Creates a BoolField with `name` and adds it to the container.
IntField *	addInt (const char *name)
	Creates an IntField with `name` and adds it to the container. Default value is 0.
IntField *	addInt (const char *name, MLint value)
	Creates an IntField with `name` and adds it to the container.
EnumField *	addEnum (const char name, const char const *enumerationItemNames, MLint numEnumerationItems)
EnumField *	addEnum (const char *name, const std::vector< std::string > &enumerationItemNames)
template<typename EnumType>
TypedEnumField< EnumType > *	addEnum (const char *name, const EnumValues< EnumType > &values, EnumType initialValue)
FloatField *	addFloat (const char *name)
	Creates a FloatField with `name` and adds it to the container. Default value is 0.f.
FloatField *	addFloat (const char *name, float value)
	Creates a FloatField with `name` and adds it to the container.
ProgressField *	addProgress (const char *name)
	Creates a float ProgressField with `name` and adds it to the container. Default value is 0.f.
ProgressField *	addProgress (const char *name, float value)
	Creates a float ProgressField with `name` and adds it to the container.
DoubleField *	addDouble (const char *name)
	Creates a DoubleField with `name` and adds it to the container. Default value is 0.
DoubleField *	addDouble (const char *name, double value)
	Creates a DoubleField with `name` and adds it to the container.
StringField *	addString (const char *name)
	Creates a StringField with `name` and adds it to the container. Default value is empty string.
StringField *	addString (const char *name, const std::string &value)
	Creates a StringField with `name` and adds it to the container.
NotifyField *	addNotify (const char *name)
	Creates a NotifyField field with `name` and adds it to the container.
TriggerField *	addTrigger (const char *name)
BaseField *	addBase (const char *name)
	Creates a Base field with `name` and adds it to the container. Default value is NULL.
BaseField *	addBase (const char name, Base value)
	Creates a Base field with `name` and adds it to the container.
BaseField *	addBase (const char *name, const RefCountedBasePtr &value)
	Creates a Base field with `name` and adds it to the container. Sets the value from intrusive pointer.
template<typename T>
BaseField *	addBaseWithAllowedType (const char name, T value=nullptr)
	As above, but also sets the allowed type of the field.
template<typename T>
BaseField *	addBaseWithAllowedType (const char *name, const ::boost::intrusive_ptr< T > &value)
	As above, but also sets the allowed type of the field.
template<typename T>
TypedBaseField< T > *	addTypedBase (const char *name)
	Creates a TypedBaseField with `name` and adds it to the container. Default value is NULL.
template<typename T>
TypedBaseField< T > *	addTypedBase (const char name, T value)
	Creates a TypedBaseField with `name` and adds it to the container.
template<typename T>
TypedBaseField< T > *	addTypedBase (const char *name, const ::boost::intrusive_ptr< T > &value)
	Creates a TypedBaseField with `name` and adds it to the container. Sets the value from intrusive pointer.
SoNodeField *	addSoNode (const char *name)
	Creates a SoNodeField with `name` and adds it to the container. Default value is NULL.
SoNodeField *	addSoNode (const char name, SoNode value)
	Creates a SoNodeField with `name` and adds it to the container.
PointerField *	addPointer (const char *name)
	Creates a PointerField with `name` and adds it to the container.
Vector2Field *	addVector2 (const char *name)
	Creates a Vector2Field with `name` and adds it to the container.
Vector2Field *	addVector2 (const char *name, const Vector2 &value)
	Creates a Vector2Field with `name` and adds it to the container.
Vector2Field *	addVector2 (const char *name, double x, double y)
	Creates a Vector2Field with `name` and adds it to the container.
Vector3Field *	addVector3 (const char *name)
	Creates a Vector3Field with `name` and adds it to the container.
Vector3Field *	addVector3 (const char *name, const Vector3 &value)
	Creates a Vector3Field with `name` and adds it to the container.
Vector3Field *	addVector3 (const char *name, double x, double y, double z)
	Creates a Vector3Field with `name` and adds it to the container.
Vector4Field *	addVector4 (const char *name)
	Creates a Vector4Field with `name` and adds it to the container.
Vector4Field *	addVector4 (const char *name, const Vector4 &value)
	Creates a Vector4Field with `name` and adds it to the container.
Vector4Field *	addVector4 (const char *name, double x, double y, double z, double w)
	Creates a Vector4Field with `name` and adds it to the container.
Vector5Field *	addVector5 (const char *name)
	Creates a Vector5Field with `name` and adds it to the container.
Vector5Field *	addVector5 (const char *name, const Vector5 &value)
	Creates a Vector5Field with `name` and adds it to the container.
Vector6Field *	addVector6 (const char *name)
	Creates a Vector6Field with `name` and adds it to the container.
Vector6Field *	addVector6 (const char *name, const Vector6 &value)
	Creates a Vector6Field with `name` and adds it to the container.
Vector10Field *	addVector10 (const char *name)
	Creates a Vector10Field with `name` and adds it to the container.
Vector10Field *	addVector10 (const char *name, const Vector10 &value)
	Creates a Vector10Field with `name` and adds it to the container.
ImageVectorField *	addImageVector (const char *name)
	Creates a ImageVectorField with `name` and adds it to the container.
ImageVectorField *	addImageVector (const char *name, const ImageVector &value)
	Creates a ImageVectorField with `name` and adds it to the container.
ImageVectorField *	addImageVector (const char *name, MLint x, MLint y, MLint z, MLint c, MLint t, MLint u)
	Creates a ImageVectorField with `name` and adds it to the container.
SubImageBoxField *	addSubImageBox (const char *name)
	Creates a SubImageBoxField with `name` and adds it to the container.
SubImageBoxField *	addSubImageBox (const char *name, const SubImageBox &value)
	Creates a SubImageBoxField with `name` and adds it to the container.
SubImageBoxdField *	addSubImageBoxd (const char *name)
	Creates a SubImageBoxd field with `name` and adds it to the container.
SubImageBoxdField *	addSubImageBoxd (const char *name, const SubImageBoxd &value)
	Creates a SubImageBoxd field with `name` and adds it to the container.
ColorField *	addColor (const char *name)
	Creates a ColorField with `name` and adds it to the container.
ColorField *	addColor (const char *name, float r, float g, float b)
	Creates a ColorField with `name` and adds it to the container.
ColorField *	addColor (const char *name, const Vector3 &value)
	Creates a ColorField with `name` and adds it to the container.
PlaneField *	addPlane (const char *name)
	Creates a PlaneField with `name` and adds it to the container.
PlaneField *	addPlane (const char *name, double f0, double f1, double f2, double f3)
	Creates a PlaneField with `name` and adds it to the container.
PlaneField *	addPlane (const char *name, const Plane &value)
	Creates a PlaneField with `name` and adds it to the container.
RotationField *	addRotation (const char *name)
	Creates a RotationField with `name` and adds it to the container.
RotationField *	addRotation (const char *name, const Rotation &value)
	Creates a RotationField with `name` and adds it to the container.
Matrix2Field *	addMatrix2 (const char *name)
	Creates a Matrix2Field with `name` and adds it to the container.
Matrix2Field *	addMatrix2 (const char *name, const Matrix2 &value)
	Creates a Matrix2Field with `name` and adds it to the container.
Matrix3Field *	addMatrix3 (const char *name)
	Creates a Matrix3Field with `name` and adds it to the container.
Matrix3Field *	addMatrix3 (const char *name, const Matrix3 &value)
	Creates a Matrix3Field with `name` and adds it to the container.
Matrix4Field *	addMatrix4 (const char *name)
	Creates a Matrix4Field with `name` and adds it to the container.
Matrix4Field *	addMatrix4 (const char *name, const Matrix4 &value)
	Creates a Matrix4Field with `name` and adds it to the container.
Matrix5Field *	addMatrix5 (const char *name)
	Creates a Matrix5Field with `name` and adds it to the container.
Matrix5Field *	addMatrix5 (const char *name, const Matrix5 &value)
	Creates a Matrix5Field with `name` and adds it to the container.
Matrix6Field *	addMatrix6 (const char *name)
	Creates a Matrix6Field with `name` and adds it to the container.
Matrix6Field *	addMatrix6 (const char *name, const Matrix6 &value)
	Creates a Matrix6Field with `name` and adds it to the container.
MatrixField *	addMatrix (const char *name)
	Creates a MatrixField with `name` and adds it to the container.
MatrixField *	addMatrix (const char *name, const Matrix4 &value)
	Creates a MatrixField with `name` and adds it to the container.
MLDataTypeField *	addMLDataType (const char *name)
	Creates a MTDataTypeField with `name` and adds it to the container.
MLDataTypeField *	addMLDataType (const char *name, MLDataType value)
	Creates a MTDataTypeField with `name` and adds it to the container.
UniversalTypeField *	addUniversalType (const char *name)
	Creates an UniversalTypeField field with `name` and adds it to the container.
IntListField *	addIntList (const char *name)
	Creates an IntListField field with `name` and empty list value and adds it to the container.
IntListField *	addIntList (const char *name, const std::vector< MLint > &value)
	Creates an IntListField field with `name` and given list value and adds it to the container.
DoubleListField *	addDoubleList (const char *name)
	Creates an DoubleListField field with `name` and empty list value and adds it to the container.
DoubleListField *	addDoubleList (const char *name, const std::vector< double > &value)
	Creates an DoubleListField field with `name` and given list value and adds it to the container.
Vector2ListField *	addVector2List (const char *name)
	Creates an Vector2ListField field with `name` and empty list value and adds it to the container.
Vector2ListField *	addVector2List (const char *name, const std::vector< Vector2 > &value)
	Creates an Vector2ListField field with `name` and given list value and adds it to the container.
Vector3ListField *	addVector3List (const char *name)
	Creates an Vector3ListField field with `name` and empty list value and adds it to the container.
Vector3ListField *	addVector3List (const char *name, const std::vector< Vector3 > &value)
	Creates an Vector3ListField field with `name` and given list value and adds it to the container.
Vector4ListField *	addVector4List (const char *name)
	Creates an Vector4ListField field with `name` and empty list value and adds it to the container.
Vector4ListField *	addVector4List (const char *name, const std::vector< Vector4 > &value)
	Creates an Vector4ListField field with `name` and given list value and adds it to the container.
size_t	getNumFields () const
	Returns the number of added fields.
bool	hasField (const std::string &name) const
	Returns `true` if the field with name `name` exists; otherwise, `false` is returned.
Field *	getField (const std::string &name) const
Field *	getField (MLint index) const
	Returns pointer of field at `index` if it exists. If not, -1 is returned.
MLint	getFieldIndex (Field *field) const
	Returns index of `field` if it exists. If not, -1 is returned.
void	setFieldStringValue (const std::string &name, const std::string &value)
std::string	getFieldStringValue (const std::string &name) const
virtual void	activateAttachments ()
virtual void	deactivateAttachments ()
Public Member Functions inherited from ml::Base
	Base ()
	Constructor.
virtual	~Base ()
	Destructor.
virtual Base *	deepCopy () const
bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
virtual bool	isRefCountedBase () const
	Returns whether the instance is derived from RefCountedBase.
virtual std::string	detailString () const
virtual bool	implementsPersistence (PersistenceInterface) const
virtual std::string	persistentState () const
	Returns a string describing the object's internal state.
virtual void	setPersistentState (const std::string &state)
virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node.
virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node.
virtual void	writeTo (AbstractPersistenceOutputStream *) const
virtual void	readFrom (AbstractPersistenceInputStream *, int)

Protected Attributes
BaseField *	_outputPlacementFld

Additional Inherited Members
Public Types inherited from ml::Module
enum	PERMITTED_TYPES { ONLY_SCALAR_TYPES , ONLY_DEFAULT_TYPES , ALL_REGISTERED_TYPES }
	See documentation of setVoxelDataTypeSupport. More...
enum	INPUT_STATE { DISCONNECTED = 0 , CONNECTED_BUT_INVALID = 1 , CONNECTED_AND_VALID = 2 , CONNECTED_BUT_NEEDS_UPDATE = 3 }
	See documentation of handleInput. More...
enum	INPUT_HANDLE { INVALIDATE = 0 , ALLOW_INVALID_INPUT = 2 }
	See documentation of handleInput. More...
Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...
Static Public Member Functions inherited from ml::Module
static MLErrorCode	getTile (PagedImage image, SubImageBox loc, MLDataType datatype, void data, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
static MLErrorCode	getTile (PagedImage image, SubImage &subimg, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
static MLErrorCode	updateImageProperties (PagedImage *image)
static void	freeTile (void *data)
	For documentation see Host::freeTile().
static void	updateProgress (const char info1, const char info2)
	For documentation see Host::updateProgress().
static bool	shouldTerminate ()
	For documentation see Host::shouldTerminate().
static Field *	getPressedNotifyField ()
	For documentation see Host::getPressedNotifyField().
static void	adaptPageExtent (ImageVector &pageExtent, MLDataType imageType, const ImageVector &newImgExtent, const ImageVector &oldImgExtent, const ImageVector &pageUnit=ImageVector(0), const ImageVector &minPageExtent=ImageVector(0), const ImageVector &maxPageExtent=ImageVector(0))
static std::string	getVoxelValueAsString (PagedImage image, const ImageVector &position, MLErrorCode errorCode=nullptr, const std::string &errorResult="")
static size_t	getNumModules ()
	Returns the number of instantiated modules.
static Module *	getModule (size_t index)
	Returns a pointer to instantiated module `index`.
static MLint	findModuleIndex (Module &module)
	Returns the index of Module `module`. If not found, -1 is returned.
static void	destroyModule ()
Protected Types inherited from ml::Module
enum	THREAD_SUPPORT { NO_THREAD_SUPPORT = PagedImage::NO_THREAD_SUPPORT , MULTITHREADED = PagedImage::MULTITHREADED , IO_THREAD = PagedImage::IO_THREAD }
Protected Member Functions inherited from ml::Module
void	handleNotificationInternal (Field *field, FieldSensor::Strength strength) override
virtual CalculateOutputImageHandler *	createCalculateOutputImageHandler (PagedImage *outputImage)
virtual void	calculateOutputImageProperties (int outputIndex, PagedImage *outputImage)
virtual SubImageBox	calculateInputSubImageBox (int, const SubImageBox &outputSubImageBox, int)
virtual void	calculateOutputSubImage (SubImage outputSubImage, int outputIndex, SubImage inputSubImages)
virtual void	provideCustomPage (int, const SubImageBox &, MLMemoryBlockHandle &)
void	handleNotificationOff ()
void	handleNotificationOn ()
bool	isHandleNotificationOn ()
	Returns `true` if handleNotification calls are permitted; otherwise, it returns `false`.
void	setOutputImageInplace (MLint outputIndex=0, MLint inputIndex=0)
void	unsetOutputImageInplace (MLint outputIndex=0)
void	setBypass (MLint outputIndex=0, MLint inputIndex=0)
void	setClampPagesToImageExtent (bool flag=true)
void	setThreadSupport (THREAD_SUPPORT supportMode)
void	permitRecursiveHandleNotifications (bool enable)
void	setVoxelDataTypeSupport (PERMITTED_TYPES permTypes)
virtual void	handleNotification (Field *)

Detailed Description

Base module for providing custom label placement strategies.

Definition at line 30 of file CSOLabelPlacement.h.

Constructor & Destructor Documentation

◆ CSOLabelPlacement()

ml::CSOLabelPlacement::CSOLabelPlacement ( )

Member Function Documentation

◆ getAttachedLabelPosition()

virtual void ml::CSOLabelPlacement::getAttachedLabelPosition	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		int	labelWidth,
		int	labelHeight,
		float &	deviceX,
		float &	deviceY )

virtual

Fills up the device position for an attached label.

Reimplemented in ml::CSOLabelPlacementDistanceLines, ml::CSOLabelPlacementGlobal, and ml::CSOLabelPlacementLocal.

◆ getLayoutedLabelPosition()

virtual void ml::CSOLabelPlacement::getLayoutedLabelPosition	(	const CSODrawCSOInfos &	,
		const CSODrawView2DInfos &	,
		float &	,
		float &	)

inlinevirtual

Definition at line 44 of file CSOLabelPlacement.h.

◆ layoutVisibleCSOs()

virtual void ml::CSOLabelPlacement::layoutVisibleCSOs	(	const std::vector< CSODrawCSOInfos > &	,
		const std::map< int, SbVec2f > &	,
		const CSODrawView2DInfos &	,
		SoCSOLabelRenderer *	)

inlinevirtual

Reimplemented in ml::CSOLabelPlacementGlobal.

Definition at line 36 of file CSOLabelPlacement.h.

Member Data Documentation

◆ _outputPlacementFld

BaseField* ml::CSOLabelPlacement::_outputPlacementFld

protected

Definition at line 48 of file CSOLabelPlacement.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoCSO/SoView2DCSOEditor/SoView2DCSOExtensibleEditor/extensions/SoCSOLabelRenderer/CSOLabelPlacement.h

Public Member Functions

Protected Attributes

Additional Inherited Members
