#include <mlDicomSaveBase.h>

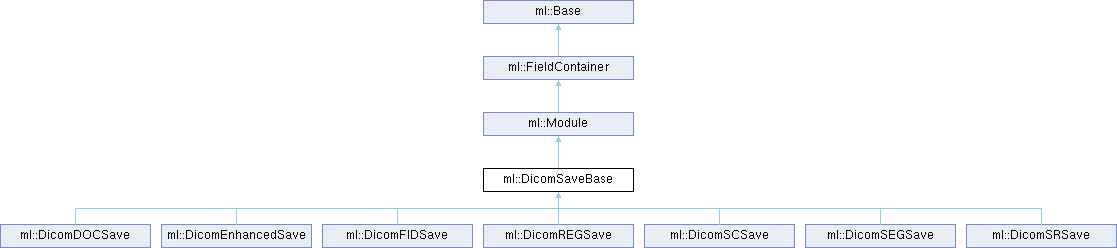

Inheritance diagram for ml::DicomSaveBase:

Public Member Functions
	DicomSaveBase (int numInputs=1, int numOutputs=0)
	Constructor, currently 0-3 input images are allowed to be set by derived modules.

const BoolField &	getCopyOtherInputTagsFld () const
	Access to internal fields fields, see corresponding member documentation for details.
BoolField &	getDumpPrivateTagValuesFld () const
const StringField &	getFileNameField () const
const NotifyField &	getInheritDICOMTagsFld () const
const BoolField &	getPostBadParamErrorsField () const
NotifyField &	getSaveField () const
StringField &	getStatusField () const
IntField &	getTagDumpSizeFld () const
StringField &	getTagDumpFld () const
Public Member Functions inherited from ml::Module
MLMetaProfilePtr &	getMetaProfile () const
	Returns the metaprofile for the base operator.
const char *	getTypeNameFast () const
	Module (int numInputImages, int numOutputImages)
	~Module () override
InputConnectorField *	getInputImageField (MLint i) const
	Returns the field representing input image `i`. `i` must be a valid index.
OutputConnectorField *	getOutputImageField (MLint i=0) const
	Returns the field representing output image `i`. `i` must be a valid index.
MLint	getNumInputImages () const
	Returns the number of input images of this module.
MLint	getNumOutputImages () const
	Returns the number of output images of this module.
PagedImage *	getOutputImage (MLint outputIndex=0) const
	Returns the output image `outputIndex`. The index needs to be in the range [0, getNumOutputImages()-1].
InputConnectorField *	addInputImage (const char *name=nullptr)
OutputConnectorField *	addOutputImage (const char *name=nullptr)
PagedImage *	getInputImage (MLint inputIndex, bool getReal=false) const
PagedImage *	getUpdatedInputImage (MLint inputIndex, bool getReal=false) const
MLErrorCode	processAllPages (int outputIndex=-1, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
MLErrorCode	processAllPages (ProcessAllPagesHandler &handler, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
MLErrorCode	processMissingPages (int outputIndex=0, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
void	clearOutputImage (MLint i=0)
	Clears cached output image pages of output image `i`.
MLint	getOutputImageInplace (MLint outputIndex=0) const
MLint	getBypass (MLint outputIndex=0) const
THREAD_SUPPORT	getThreadSupport () const
bool	areRecursiveHandleNotificationsPermitted () const
MLint	getHandleNotificationEntryCounter () const
PERMITTED_TYPES	getVoxelDataTypeSupport () const
bool	isSupportedVoxelDataType (MLDataType dt) const
virtual INPUT_HANDLE	handleInput (int, INPUT_STATE) const
INPUT_STATE	getInputState (MLint index)
INPUT_STATE	getUpdatedInputState (MLint index)
bool	isInputImageField (Field *field) const
void	touchOutputImageFields () const
	Touches all output image fields to indicate that the images have changed.
virtual void	beginSaveFields ()
virtual void	endSaveFields ()
Public Member Functions inherited from ml::FieldContainer
	FieldContainer ()
	Constructor.
	~FieldContainer () override
	Destructor: Deletes all added fields.
std::string	whoAmI (bool withInstanceName=true) const
Field *	addField (const char name, const char type, const char *value)
Field *	addField (Field *field)
	Adds a `field`, the ownership of the field is passed to the FieldContainer.
BoolField *	addBool (const char *name)
	Creates a BoolField with `name` and adds it to the container. Default value is `false`.
BoolField *	addBool (const char *name, bool value)
	Creates a BoolField with `name` and adds it to the container.
IntField *	addInt (const char *name)
	Creates an IntField with `name` and adds it to the container. Default value is 0.
IntField *	addInt (const char *name, MLint value)
	Creates an IntField with `name` and adds it to the container.
EnumField *	addEnum (const char name, const char const *enumerationItemNames, MLint numEnumerationItems)
EnumField *	addEnum (const char *name, const std::vector< std::string > &enumerationItemNames)
template<typename EnumType>
TypedEnumField< EnumType > *	addEnum (const char *name, const EnumValues< EnumType > &values, EnumType initialValue)
FloatField *	addFloat (const char *name)
	Creates a FloatField with `name` and adds it to the container. Default value is 0.f.
FloatField *	addFloat (const char *name, float value)
	Creates a FloatField with `name` and adds it to the container.
ProgressField *	addProgress (const char *name)
	Creates a float ProgressField with `name` and adds it to the container. Default value is 0.f.
ProgressField *	addProgress (const char *name, float value)
	Creates a float ProgressField with `name` and adds it to the container.
DoubleField *	addDouble (const char *name)
	Creates a DoubleField with `name` and adds it to the container. Default value is 0.
DoubleField *	addDouble (const char *name, double value)
	Creates a DoubleField with `name` and adds it to the container.
StringField *	addString (const char *name)
	Creates a StringField with `name` and adds it to the container. Default value is empty string.
StringField *	addString (const char *name, const std::string &value)
	Creates a StringField with `name` and adds it to the container.
NotifyField *	addNotify (const char *name)
	Creates a NotifyField field with `name` and adds it to the container.
TriggerField *	addTrigger (const char *name)
BaseField *	addBase (const char *name)
	Creates a Base field with `name` and adds it to the container. Default value is NULL.
BaseField *	addBase (const char name, Base value)
	Creates a Base field with `name` and adds it to the container.
BaseField *	addBase (const char *name, const RefCountedBasePtr &value)
	Creates a Base field with `name` and adds it to the container. Sets the value from intrusive pointer.
template<typename T>
BaseField *	addBaseWithAllowedType (const char name, T value=nullptr)
	As above, but also sets the allowed type of the field.
template<typename T>
BaseField *	addBaseWithAllowedType (const char *name, const ::boost::intrusive_ptr< T > &value)
	As above, but also sets the allowed type of the field.
template<typename T>
TypedBaseField< T > *	addTypedBase (const char *name)
	Creates a TypedBaseField with `name` and adds it to the container. Default value is NULL.
template<typename T>
TypedBaseField< T > *	addTypedBase (const char name, T value)
	Creates a TypedBaseField with `name` and adds it to the container.
template<typename T>
TypedBaseField< T > *	addTypedBase (const char *name, const ::boost::intrusive_ptr< T > &value)
	Creates a TypedBaseField with `name` and adds it to the container. Sets the value from intrusive pointer.
SoNodeField *	addSoNode (const char *name)
	Creates a SoNodeField with `name` and adds it to the container. Default value is NULL.
SoNodeField *	addSoNode (const char name, SoNode value)
	Creates a SoNodeField with `name` and adds it to the container.
PointerField *	addPointer (const char *name)
	Creates a PointerField with `name` and adds it to the container.
Vector2Field *	addVector2 (const char *name)
	Creates a Vector2Field with `name` and adds it to the container.
Vector2Field *	addVector2 (const char *name, const Vector2 &value)
	Creates a Vector2Field with `name` and adds it to the container.
Vector2Field *	addVector2 (const char *name, double x, double y)
	Creates a Vector2Field with `name` and adds it to the container.
Vector3Field *	addVector3 (const char *name)
	Creates a Vector3Field with `name` and adds it to the container.
Vector3Field *	addVector3 (const char *name, const Vector3 &value)
	Creates a Vector3Field with `name` and adds it to the container.
Vector3Field *	addVector3 (const char *name, double x, double y, double z)
	Creates a Vector3Field with `name` and adds it to the container.
Vector4Field *	addVector4 (const char *name)
	Creates a Vector4Field with `name` and adds it to the container.
Vector4Field *	addVector4 (const char *name, const Vector4 &value)
	Creates a Vector4Field with `name` and adds it to the container.
Vector4Field *	addVector4 (const char *name, double x, double y, double z, double w)
	Creates a Vector4Field with `name` and adds it to the container.
Vector5Field *	addVector5 (const char *name)
	Creates a Vector5Field with `name` and adds it to the container.
Vector5Field *	addVector5 (const char *name, const Vector5 &value)
	Creates a Vector5Field with `name` and adds it to the container.
Vector6Field *	addVector6 (const char *name)
	Creates a Vector6Field with `name` and adds it to the container.
Vector6Field *	addVector6 (const char *name, const Vector6 &value)
	Creates a Vector6Field with `name` and adds it to the container.
Vector10Field *	addVector10 (const char *name)
	Creates a Vector10Field with `name` and adds it to the container.
Vector10Field *	addVector10 (const char *name, const Vector10 &value)
	Creates a Vector10Field with `name` and adds it to the container.
ImageVectorField *	addImageVector (const char *name)
	Creates a ImageVectorField with `name` and adds it to the container.
ImageVectorField *	addImageVector (const char *name, const ImageVector &value)
	Creates a ImageVectorField with `name` and adds it to the container.
ImageVectorField *	addImageVector (const char *name, MLint x, MLint y, MLint z, MLint c, MLint t, MLint u)
	Creates a ImageVectorField with `name` and adds it to the container.
SubImageBoxField *	addSubImageBox (const char *name)
	Creates a SubImageBoxField with `name` and adds it to the container.
SubImageBoxField *	addSubImageBox (const char *name, const SubImageBox &value)
	Creates a SubImageBoxField with `name` and adds it to the container.
SubImageBoxdField *	addSubImageBoxd (const char *name)
	Creates a SubImageBoxd field with `name` and adds it to the container.
SubImageBoxdField *	addSubImageBoxd (const char *name, const SubImageBoxd &value)
	Creates a SubImageBoxd field with `name` and adds it to the container.
ColorField *	addColor (const char *name)
	Creates a ColorField with `name` and adds it to the container.
ColorField *	addColor (const char *name, float r, float g, float b)
	Creates a ColorField with `name` and adds it to the container.
ColorField *	addColor (const char *name, const Vector3 &value)
	Creates a ColorField with `name` and adds it to the container.
PlaneField *	addPlane (const char *name)
	Creates a PlaneField with `name` and adds it to the container.
PlaneField *	addPlane (const char *name, double f0, double f1, double f2, double f3)
	Creates a PlaneField with `name` and adds it to the container.
PlaneField *	addPlane (const char *name, const Plane &value)
	Creates a PlaneField with `name` and adds it to the container.
RotationField *	addRotation (const char *name)
	Creates a RotationField with `name` and adds it to the container.
RotationField *	addRotation (const char *name, const Rotation &value)
	Creates a RotationField with `name` and adds it to the container.
Matrix2Field *	addMatrix2 (const char *name)
	Creates a Matrix2Field with `name` and adds it to the container.
Matrix2Field *	addMatrix2 (const char *name, const Matrix2 &value)
	Creates a Matrix2Field with `name` and adds it to the container.
Matrix3Field *	addMatrix3 (const char *name)
	Creates a Matrix3Field with `name` and adds it to the container.
Matrix3Field *	addMatrix3 (const char *name, const Matrix3 &value)
	Creates a Matrix3Field with `name` and adds it to the container.
Matrix4Field *	addMatrix4 (const char *name)
	Creates a Matrix4Field with `name` and adds it to the container.
Matrix4Field *	addMatrix4 (const char *name, const Matrix4 &value)
	Creates a Matrix4Field with `name` and adds it to the container.
Matrix5Field *	addMatrix5 (const char *name)
	Creates a Matrix5Field with `name` and adds it to the container.
Matrix5Field *	addMatrix5 (const char *name, const Matrix5 &value)
	Creates a Matrix5Field with `name` and adds it to the container.
Matrix6Field *	addMatrix6 (const char *name)
	Creates a Matrix6Field with `name` and adds it to the container.
Matrix6Field *	addMatrix6 (const char *name, const Matrix6 &value)
	Creates a Matrix6Field with `name` and adds it to the container.
MatrixField *	addMatrix (const char *name)
	Creates a MatrixField with `name` and adds it to the container.
MatrixField *	addMatrix (const char *name, const Matrix4 &value)
	Creates a MatrixField with `name` and adds it to the container.
MLDataTypeField *	addMLDataType (const char *name)
	Creates a MTDataTypeField with `name` and adds it to the container.
MLDataTypeField *	addMLDataType (const char *name, MLDataType value)
	Creates a MTDataTypeField with `name` and adds it to the container.
UniversalTypeField *	addUniversalType (const char *name)
	Creates an UniversalTypeField field with `name` and adds it to the container.
IntListField *	addIntList (const char *name)
	Creates an IntListField field with `name` and empty list value and adds it to the container.
IntListField *	addIntList (const char *name, const std::vector< MLint > &value)
	Creates an IntListField field with `name` and given list value and adds it to the container.
DoubleListField *	addDoubleList (const char *name)
	Creates an DoubleListField field with `name` and empty list value and adds it to the container.
DoubleListField *	addDoubleList (const char *name, const std::vector< double > &value)
	Creates an DoubleListField field with `name` and given list value and adds it to the container.
Vector2ListField *	addVector2List (const char *name)
	Creates an Vector2ListField field with `name` and empty list value and adds it to the container.
Vector2ListField *	addVector2List (const char *name, const std::vector< Vector2 > &value)
	Creates an Vector2ListField field with `name` and given list value and adds it to the container.
Vector3ListField *	addVector3List (const char *name)
	Creates an Vector3ListField field with `name` and empty list value and adds it to the container.
Vector3ListField *	addVector3List (const char *name, const std::vector< Vector3 > &value)
	Creates an Vector3ListField field with `name` and given list value and adds it to the container.
Vector4ListField *	addVector4List (const char *name)
	Creates an Vector4ListField field with `name` and empty list value and adds it to the container.
Vector4ListField *	addVector4List (const char *name, const std::vector< Vector4 > &value)
	Creates an Vector4ListField field with `name` and given list value and adds it to the container.
size_t	getNumFields () const
	Returns the number of added fields.
bool	hasField (const std::string &name) const
	Returns `true` if the field with name `name` exists; otherwise, `false` is returned.
Field *	getField (const std::string &name) const
Field *	getField (MLint index) const
	Returns pointer of field at `index` if it exists. If not, -1 is returned.
MLint	getFieldIndex (Field *field) const
	Returns index of `field` if it exists. If not, -1 is returned.
void	setFieldStringValue (const std::string &name, const std::string &value)
std::string	getFieldStringValue (const std::string &name) const
virtual void	deactivateAttachments ()
Public Member Functions inherited from ml::Base
	Base ()
	Constructor.
virtual	~Base ()
	Destructor.
virtual Base *	deepCopy () const
bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
virtual bool	isRefCountedBase () const
	Returns whether the instance is derived from RefCountedBase.
virtual std::string	detailString () const
virtual bool	implementsPersistence (PersistenceInterface) const
virtual std::string	persistentState () const
	Returns a string describing the object's internal state.
virtual void	setPersistentState (const std::string &state)
virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node.
virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node.
virtual void	writeTo (AbstractPersistenceOutputStream *) const
virtual void	readFrom (AbstractPersistenceInputStream *, int)

Static Public Member Functions
static std::string	checkXYZValues (const ImageVector &ext)
static std::string	checkMaximumPixelDataSize (const PagedImage &inImg)
Static Public Member Functions inherited from ml::Module
static MLErrorCode	getTile (PagedImage image, SubImageBox loc, MLDataType datatype, void data, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
static MLErrorCode	getTile (PagedImage image, SubImage &subimg, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
static MLErrorCode	updateImageProperties (PagedImage *image)
static void	freeTile (void *data)
	For documentation see Host::freeTile().
static void	updateProgress (const char info1, const char info2)
	For documentation see Host::updateProgress().
static bool	shouldTerminate ()
	For documentation see Host::shouldTerminate().
static Field *	getPressedNotifyField ()
	For documentation see Host::getPressedNotifyField().
static void	adaptPageExtent (ImageVector &pageExtent, MLDataType imageType, const ImageVector &newImgExtent, const ImageVector &oldImgExtent, const ImageVector &pageUnit=ImageVector(0), const ImageVector &minPageExtent=ImageVector(0), const ImageVector &maxPageExtent=ImageVector(0))
static std::string	getVoxelValueAsString (PagedImage image, const ImageVector &position, MLErrorCode errorCode=nullptr, const std::string &errorResult="")
static size_t	getNumModules ()
	Returns the number of instantiated modules.
static Module *	getModule (size_t index)
	Returns a pointer to instantiated module `index`.
static MLint	findModuleIndex (Module &module)
	Returns the index of Module `module`. If not found, -1 is returned.
static void	destroyModule ()

Protected Member Functions
void	handleNotification (Field *field) override
	Handles field changes of the field `field`.
void	activateAttachments () override
	Updates the internal module state after loading or cloning the module, and enables notification handling again.
virtual void	_inheritFieldValuesFromDCMTree (DCMTree::Const_TreePtr dcmTree)=0
DCMTree::Const_TreePtr	_getCurrentOriginalInputTree () const
	Returns content of the _currentOriginalInputTree after the recent call of _updateInputState().
DCMTree::TreePtr	_getCurrentModifiableTree () const
	Returns content of _currentModifiableTree after the recent call of _updateInputState().
PagedImage *	_getCurrentInImg () const
	Returns content of _currentInImg after the recent call of _updateInputState().
bool &	_getAllowNULLInputTree ()
	Provides access to _allowNULLInputTree.
virtual std::string	_checkConsistency () const =0
virtual std::string	_setUpTreeContent ()=0
virtual DCMTree::Const_TreePtr	_getInputDCMTree (DicomMessageCollector &dcmMsgCollector)
virtual std::string	_getInputImageConfiguration (int inputImageConnector, DCMTree::Const_TreePtr &originalInputImageTree, DCMTree::TreePtr &resultDcmTree, PagedImage *&inImg)
virtual void	_updateInputState ()
virtual void	_updateTagDump (DCMTree::Const_TreePtr dcmTree)
virtual void	_createInputModifierConnector ()
virtual std::string	_applyInputModifiersIfAvailable (DCMTree::TreePtr dcmTree, const FieldContainer *treeInfos=nullptr)
virtual void	_save ()
Protected Member Functions inherited from ml::Module
void	handleNotificationInternal (Field *field, FieldSensor::Strength strength) override
virtual CalculateOutputImageHandler *	createCalculateOutputImageHandler (PagedImage *outputImage)
virtual void	calculateOutputImageProperties (int outputIndex, PagedImage *outputImage)
virtual SubImageBox	calculateInputSubImageBox (int, const SubImageBox &outputSubImageBox, int)
virtual void	calculateOutputSubImage (SubImage outputSubImage, int outputIndex, SubImage inputSubImages)
virtual void	provideCustomPage (int, const SubImageBox &, MLMemoryBlockHandle &)
void	handleNotificationOff ()
void	handleNotificationOn ()
bool	isHandleNotificationOn ()
	Returns `true` if handleNotification calls are permitted; otherwise, it returns `false`.
void	setOutputImageInplace (MLint outputIndex=0, MLint inputIndex=0)
void	unsetOutputImageInplace (MLint outputIndex=0)
void	setBypass (MLint outputIndex=0, MLint inputIndex=0)
void	setClampPagesToImageExtent (bool flag=true)
void	setThreadSupport (THREAD_SUPPORT supportMode)
void	permitRecursiveHandleNotifications (bool enable)
void	setVoxelDataTypeSupport (PERMITTED_TYPES permTypes)

Protected Attributes
TreeAndVolumeInputFieldAddOn	_dcmTreeInputFieldAddOn
	Field AddOn to manage selectors and input connectors for DCMTrees and MultiFileVolumes.
DicomTagDumpFieldAddOn	_dicomTagDumpFieldAddOn
	Field AddOns managing the DICOM tag dump as string field.

Additional Inherited Members
Public Types inherited from ml::Module
enum	PERMITTED_TYPES { ONLY_SCALAR_TYPES , ONLY_DEFAULT_TYPES , ALL_REGISTERED_TYPES }
	See documentation of setVoxelDataTypeSupport. More...
enum	INPUT_STATE { DISCONNECTED = 0 , CONNECTED_BUT_INVALID = 1 , CONNECTED_AND_VALID = 2 , CONNECTED_BUT_NEEDS_UPDATE = 3 }
	See documentation of handleInput. More...
enum	INPUT_HANDLE { INVALIDATE = 0 , ALLOW_INVALID_INPUT = 2 }
	See documentation of handleInput. More...
Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...
Protected Types inherited from ml::Module
enum	THREAD_SUPPORT { NO_THREAD_SUPPORT = PagedImage::NO_THREAD_SUPPORT , MULTITHREADED = PagedImage::MULTITHREADED , IO_THREAD = PagedImage::IO_THREAD }

Detailed Description

Definition at line 50 of file mlDicomSaveBase.h.

Constructor & Destructor Documentation

◆ DicomSaveBase()

ml::DicomSaveBase::DicomSaveBase	(	int	numInputs = 1,
		int	numOutputs = 0 )

Constructor, currently 0-3 input images are allowed to be set by derived modules.

Member Function Documentation

◆ _applyInputModifiersIfAvailable()

virtual std::string ml::DicomSaveBase::_applyInputModifiersIfAvailable	(	DCMTree::TreePtr	dcmTree,
		const FieldContainer *	treeInfos = nullptr )

protectedvirtual

If an InputModifierConnector is available and modifiers are connected then apply them to dcmTree, otherwise the call is ignored. Called automatically by _save() before saving the tree.

Parameters

dcmTree	The DICOM tree to be modified.
treeInfos	A FieldContainer which - if not nullptr - can contain additional user defined information fields about dcmTree and the changes to perform.

Returns: An empty string on success, otherwise a cumulative descriptive string of all problems.

◆ _checkConsistency()

virtual std::string ml::DicomSaveBase::_checkConsistency ( ) const

protectedpure virtual

Checks for invalid parameters which could cause problems in file creation and return textual description on error, otherwise and empty string. must be implemented by derived classes to verify the consistency of the fields to be added in _setUpTreeContents. Called by _save after updating input state.

Implemented in ml::DicomDOCSave, ml::DicomEnhancedSave, ml::DicomFIDSave, ml::DicomREGSave, ml::DicomSCSave, ml::DicomSEGSave, and ml::DicomSRSave.

◆ _createInputModifierConnector()

virtual void ml::DicomSaveBase::_createInputModifierConnector ( )

protectedvirtual

If called then an input Base field for a DicomModifyList object is installed, typically called in constructor where fields are created.. It allows application of DICOM tag modifiers on the created DICOM tree after its final setup and as last operation before it is saved.

◆ _getAllowNULLInputTree()

bool & ml::DicomSaveBase::_getAllowNULLInputTree ( )

inlineprotected

Provides access to _allowNULLInputTree.

Definition at line 104 of file mlDicomSaveBase.h.

◆ _getCurrentInImg()

PagedImage * ml::DicomSaveBase::_getCurrentInImg ( ) const

inlineprotected

Returns content of _currentInImg after the recent call of _updateInputState().

Definition at line 101 of file mlDicomSaveBase.h.

References ml::Module::PagedImage.

◆ _getCurrentModifiableTree()

DCMTree::TreePtr ml::DicomSaveBase::_getCurrentModifiableTree ( ) const

inlineprotected

Returns content of _currentModifiableTree after the recent call of _updateInputState().

Definition at line 98 of file mlDicomSaveBase.h.

◆ _getCurrentOriginalInputTree()

DCMTree::Const_TreePtr ml::DicomSaveBase::_getCurrentOriginalInputTree ( ) const

inlineprotected

Returns content of the _currentOriginalInputTree after the recent call of _updateInputState().

Definition at line 95 of file mlDicomSaveBase.h.

◆ _getInputDCMTree()

virtual DCMTree::Const_TreePtr ml::DicomSaveBase::_getInputDCMTree ( DicomMessageCollector & dcmMsgCollector )

protectedvirtual

Gets a DCMTree from the selected input or a nullptr tree if that is not available or empty.

Parameters

dcmMsgCollector Collects error, info and issue messages (typically related to a handle).

Returns: The Const_DCMTreePtr from the selected input or a nullptr tree if that is not available or empty.

◆ _getInputImageConfiguration()

virtual std::string ml::DicomSaveBase::_getInputImageConfiguration	(	int	inputImageConnector,
		DCMTree::Const_TreePtr &	originalInputImageTree,
		DCMTree::TreePtr &	resultDcmTree,
		PagedImage *&	inImg )

protectedvirtual

Returns some important parameters of the module's input image configuration:

The original input DICOM tree of the given input image if possible/available
A copy of the input DICOM tree from the given input connector if available and _copyOtherInputTagsFld is on, or otherwise a newly created DCMTree otherwise.

The pointer to the input PagedImage or nullptr if not possible.

Parameters

inputImageConnector	The input image connector from which the DCMtree shall be retrieved.
originalInputImageTree	The unchanged input DICOM tree pointer from the specified input or reset if not possible.
resultDcmTree	The DICOM tree pointer to be updated with the new tree copy.
inImg	The pointer to the input image specified by inputImageConnector.

Returns: An empty string on success, otherwise a textual description of the error. If returned string is non-empty then originalInputTree and resulDcmTree are reset and inImg set to nullptr, otherwise originalTree points to the DCMTree in the image properties of the specified input, resultDcmTree will be a valid modifiable copy owned by the caller, and inImg points to the input PagedImage specified with inputImageConnector.

References ml::Module::PagedImage.

◆ _inheritFieldValuesFromDCMTree()

virtual void ml::DicomSaveBase::_inheritFieldValuesFromDCMTree ( DCMTree::Const_TreePtr dcmTree )

protectedpure virtual

Tries to copy all DICOM tag field information from a given DCMTree; dcmTree will be nullptr if not available; must be implemented by derived classes to fill DICOM tag fields with data from connected inputs.

Implemented in ml::DicomDOCSave, ml::DicomEnhancedSave, ml::DicomFIDSave, ml::DicomREGSave, ml::DicomSCSave, ml::DicomSEGSave, and ml::DicomSRSave.

◆ _save()

virtual void ml::DicomSaveBase::_save ( )

protectedvirtual

Saves the DICOM object in the file(s) defined by _fileNameFld. To be (re)implemented in derived classes.

Reimplemented in ml::DicomSCSave, and ml::DicomSRSave.

◆ _setUpTreeContent()

virtual std::string ml::DicomSaveBase::_setUpTreeContent ( )

protectedpure virtual

Allows the user to apply changes to the tree before it is saved; called after _updateInputState() and checkConsistency(). Must be implemented by derived classes to actually add the tag field contents to the DICOM tree to be saved.

Returns: An empty string on success, otherwise a textual description of the error.

Implemented in ml::DicomDOCSave, ml::DicomEnhancedSave, ml::DicomFIDSave, ml::DicomREGSave, ml::DicomSCSave, and ml::DicomSEGSave.

◆ _updateInputState()

virtual void ml::DicomSaveBase::_updateInputState ( )

protectedvirtual

Checks the input state and updates status fields accordingly: it gets the validity of the expected input image at connector 0 (if the connector exists), updates the three _current* members and the status field; if statusField is empty then no error has been found. Note that calls to this method also replace _currentModifiableTree, previous changes on it will be lost. Called automatically by

DicomSaveBase::activateAttachments()
DicomSaveBase::handleNotification()
DicomSaveBase::activateAttachments()
DicomSaveBase::_save()

Reimplemented in ml::DicomEnhancedSave, ml::DicomREGSave, and ml::DicomSEGSave.

◆ _updateTagDump()

virtual void ml::DicomSaveBase::_updateTagDump ( DCMTree::Const_TreePtr dcmTree )

protectedvirtual

Updates the _dicomTagDumpFieldAddOn according to the content of dcmTree; called automatically by _save().

◆ activateAttachments()

void ml::DicomSaveBase::activateAttachments ( )

overrideprotectedvirtual

Updates the internal module state after loading or cloning the module, and enables notification handling again.

Reimplemented from ml::FieldContainer.

Reimplemented in ml::DicomSCSave, ml::DicomSEGSave, and ml::DicomSRSave.

◆ checkMaximumPixelDataSize()

std::string ml::DicomSaveBase::checkMaximumPixelDataSize ( const PagedImage & inImg )

static

Returns an empty string if the passed PagedImage describes an image whose pixel data would fit into a DICOM PixelData tag and also calls checkXYValues(); if any range is exceeded a non-empty error string is returned.

References ml::Module::PagedImage.

◆ checkXYZValues()

std::string ml::DicomSaveBase::checkXYZValues ( const ImageVector & ext )

static

If Y and X are used as row and column, they can hold at most values of 65535, because these tags are of Vr US (unsigned short); NumberOfFrames tag is usually used for the z-slices and is an integer string and should not exceed is of type IS, which can hold up values up at most of 2^31-1; If any of these values exceed these ranges, a non empty error description is returned, otherwise an empty string.

◆ getCopyOtherInputTagsFld()

const BoolField & ml::DicomSaveBase::getCopyOtherInputTagsFld ( ) const

inline

Access to internal fields fields, see corresponding member documentation for details.

Definition at line 59 of file mlDicomSaveBase.h.

◆ getDumpPrivateTagValuesFld()

BoolField & ml::DicomSaveBase::getDumpPrivateTagValuesFld ( ) const

inline

Definition at line 60 of file mlDicomSaveBase.h.

References _dicomTagDumpFieldAddOn.

◆ getFileNameField()

const StringField & ml::DicomSaveBase::getFileNameField ( ) const

inline

Definition at line 61 of file mlDicomSaveBase.h.

◆ getInheritDICOMTagsFld()

const NotifyField & ml::DicomSaveBase::getInheritDICOMTagsFld ( ) const

inline

Definition at line 62 of file mlDicomSaveBase.h.

◆ getPostBadParamErrorsField()

const BoolField & ml::DicomSaveBase::getPostBadParamErrorsField ( ) const

inline

Definition at line 63 of file mlDicomSaveBase.h.

◆ getSaveField()

NotifyField & ml::DicomSaveBase::getSaveField ( ) const

inline

Definition at line 64 of file mlDicomSaveBase.h.

◆ getStatusField()

StringField & ml::DicomSaveBase::getStatusField ( ) const

inline

Definition at line 65 of file mlDicomSaveBase.h.

◆ getTagDumpFld()

StringField & ml::DicomSaveBase::getTagDumpFld ( ) const

inline

Definition at line 67 of file mlDicomSaveBase.h.

References _dicomTagDumpFieldAddOn.

◆ getTagDumpSizeFld()

IntField & ml::DicomSaveBase::getTagDumpSizeFld ( ) const

inline

Definition at line 66 of file mlDicomSaveBase.h.

References _dicomTagDumpFieldAddOn.

◆ handleNotification()

void ml::DicomSaveBase::handleNotification ( Field * field )

overrideprotectedvirtual

Handles field changes of the field field.

Reimplemented from ml::Module.

Reimplemented in ml::DicomSCSave, ml::DicomSEGSave, and ml::DicomSRSave.

Member Data Documentation

◆ _dcmTreeInputFieldAddOn

TreeAndVolumeInputFieldAddOn ml::DicomSaveBase::_dcmTreeInputFieldAddOn

protected

Field AddOn to manage selectors and input connectors for DCMTrees and MultiFileVolumes.

Definition at line 183 of file mlDicomSaveBase.h.

◆ _dicomTagDumpFieldAddOn

DicomTagDumpFieldAddOn ml::DicomSaveBase::_dicomTagDumpFieldAddOn

protected

Field AddOns managing the DICOM tag dump as string field.

Definition at line 186 of file mlDicomSaveBase.h.

Referenced by getDumpPrivateTagValuesFld(), getTagDumpFld(), and getTagDumpSizeFld().

The documentation for this class was generated from the following file:

FMEstable/ReleaseMeVis/Projects/DICOM/MLDicomOutputs/Sources/mlDicomSaveBase.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DicomSaveBase()

Member Function Documentation

◆ _applyInputModifiersIfAvailable()

◆ _checkConsistency()

◆ _createInputModifierConnector()

◆ _getAllowNULLInputTree()

◆ _getCurrentInImg()

◆ _getCurrentModifiableTree()

◆ _getCurrentOriginalInputTree()

◆ _getInputDCMTree()

◆ _getInputImageConfiguration()

◆ _inheritFieldValuesFromDCMTree()

◆ _save()

◆ _setUpTreeContent()

◆ _updateInputState()

◆ _updateTagDump()

◆ activateAttachments()

◆ checkMaximumPixelDataSize()

◆ checkXYZValues()

◆ getCopyOtherInputTagsFld()

◆ getDumpPrivateTagValuesFld()

◆ getFileNameField()

◆ getInheritDICOMTagsFld()

◆ getPostBadParamErrorsField()

◆ getSaveField()

◆ getStatusField()

◆ getTagDumpFld()

◆ getTagDumpSizeFld()

◆ handleNotification()

Member Data Documentation

◆ _dcmTreeInputFieldAddOn

◆ _dicomTagDumpFieldAddOn
